Water Extraction and Structural Drying

What is water extraction and structural drying?

Water extraction is the removal of liquid water from a building using pumps, extractors, and weighted tools; structural drying is the controlled removal of the moisture that remains inside building materials, using air movement, dehumidification, and temperature management, verified by moisture readings. Extraction takes hours. Drying commonly takes days. Skipping either step leaves water behind.

These two phases sit at the center of every professional water damage job described by the IICRC S500 standard. They are also the phases most often done poorly. A company that extracts well but leaves only a couple of fans behind has not dried the structure. A company that sets up lots of equipment but did a weak extraction has made drying slower and more expensive than it needed to be.

This page explains how extraction works, why removing water as liquid matters so much, how technicians map moisture, how air movers and dehumidifiers work together, what psychrometry and grains per pound mean in practice, and how to know when a structure is truly dry. For how these fit into the full job, see the water damage restoration process, and for a side-by-side comparison, read water extraction vs. drying.

How does professional water removal work?

Professional water removal starts with pumping deep water, then uses truck-mounted or portable extractors with wands and weighted extraction tools to pull water out of carpet, pad, and hard surfaces. The goal is to remove as much liquid as physically possible before drying equipment is placed, which shortens drying time significantly.

Extraction equipment

Why extraction quality matters so much

Evaporating water requires energy and time, while vacuuming it up requires minutes. Carpet and pad soaked in a clean-water loss can hold a large amount of water. A few quick wand passes leave most of it behind; slow, overlapping passes with a weighted tool remove far more. That difference shows up directly in how many days air movers and dehumidifiers need to run.

Good extraction also reduces wicking. While water sits on a floor, drywall and wood framing continue to pull it upward. Getting standing water off quickly limits how far up the wall moisture travels, which can be the difference between drying a wall in place and cutting out drywall.

Carpet and pad decisions

Whether carpet and pad stay depends mainly on the water category and how long the water has been present. With Category 1 water addressed promptly, carpet and pad can often be extracted and dried in place, sometimes by "floating" the carpet with air underneath. With Category 2 water, pad is generally removed and the carpet cleaned and treated. With Category 3 water, both carpet and pad are typically discarded.

Delamination is another factor. When the backing layers of a carpet separate after being wet too long, the carpet usually cannot be restored. Pad is inexpensive relative to the drying time it adds and is often removed even in cleaner losses when that is more cost-effective.

What is moisture mapping, and why does it come first?

Moisture mapping is the process of finding every wet material, measuring how wet it is, and recording it on a floor plan so drying can be targeted and verified. Water travels farther than it appears, under flooring, through wall cavities, and across subfloors, so mapping defines the true size of the loss and the equipment it needs.

Mapping is done before drying and repeated throughout. The initial map guides decisions like where to remove baseboards, whether to open a wall, and how many air movers and dehumidifiers to place. Later maps show which areas are dry and which are lagging, so equipment can be moved or removed.

Moisture detection tools

• Non-penetrating (pinless) meters scan surfaces without damaging them, making them useful for finding the edges of a wet area on drywall, flooring, and cabinets.
• Penetrating (pin) meters give specific readings at a set depth, including with insulated hammer probes that read wood moisture below the surface.

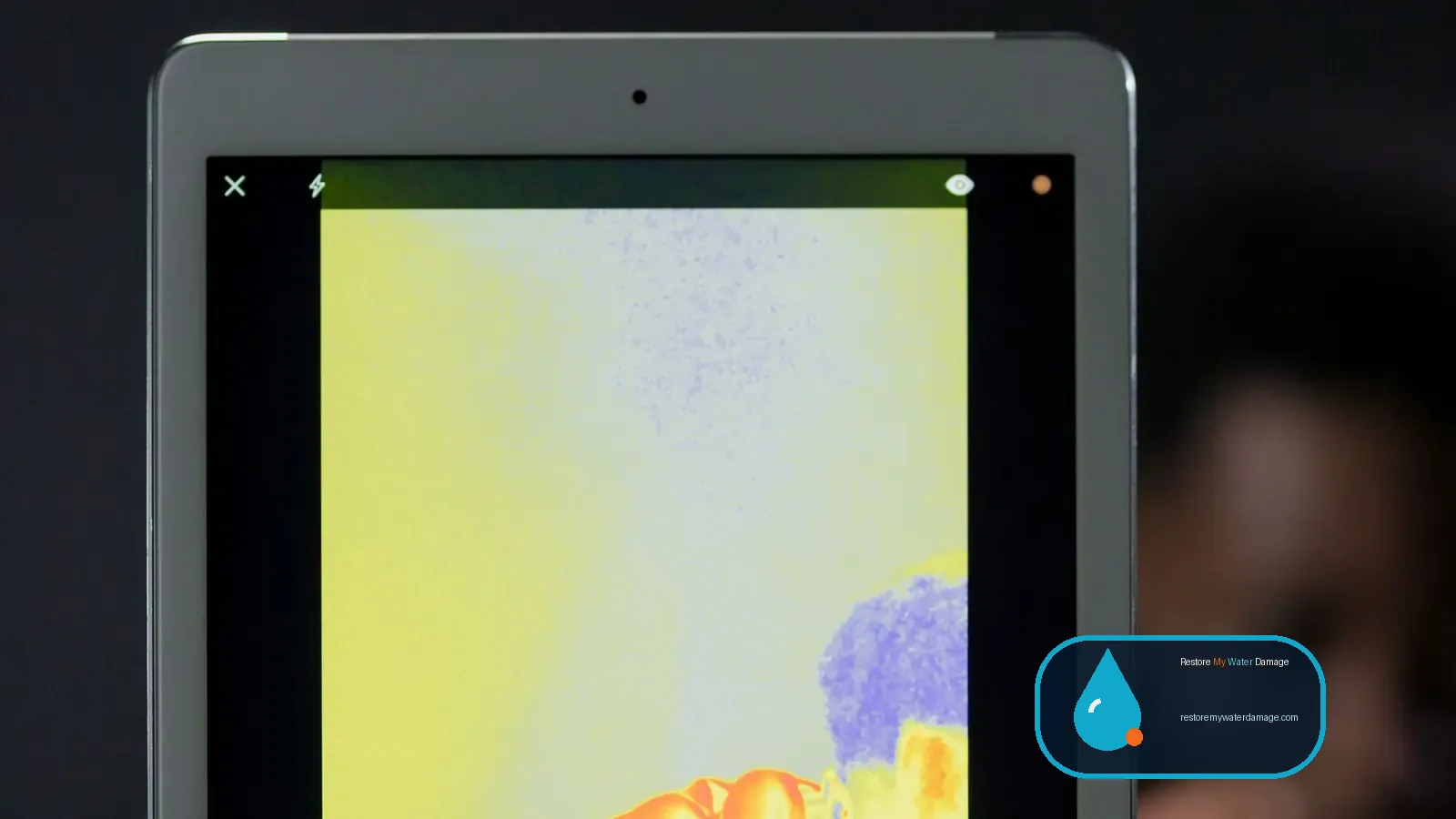

• Thermal imaging cameras show surface temperature differences. Evaporation cools wet materials, so damp areas often appear cooler, but thermal images must be confirmed with a moisture meter because many things create temperature differences.
• Thermo-hygrometers measure air temperature and relative humidity, which are used to calculate grains per pound and dew point.
• Moisture probes can reach into wall cavities, insulation, and under flooring to check conditions that meters cannot see.

The restoration equipment guide explains each of these tools in more detail.

Setting dry standards

Before drying begins, the technician takes readings from similar materials in unaffected parts of the building, such as drywall in a dry room or subfloor well outside the wet zone. These dry reference readings reflect the equilibrium moisture content of materials in that home's normal environment and become the drying goal for each material type.

Using the building's own dry materials as a standard matters because meter readings depend on the material, the meter, and local conditions. A number that means "dry" for drywall in a desert home may differ from one in a humid coastal home. Matching wet materials to the building's own dry reference is the practical way to confirm they have returned to normal.

How does structural drying actually work?

Structural drying works by balancing three factors: airflow to speed evaporation from surfaces, dehumidification to keep the air dry enough to absorb more moisture, and temperature to increase the rate of evaporation. Technicians measure air conditions and material readings daily and adjust equipment to keep drying moving efficiently.

The science behind this is psychrometry, the study of the properties of air and water vapor. You do not need to know the formulas, but a few concepts explain what the crew is doing and why they ask you not to open windows or move equipment.

Evaporation and air movement

When water evaporates from a surface, a thin layer of saturated air forms right against it. Air movers break up that boundary layer by blowing high-velocity air across the surface, so drier air keeps contacting the material. That is why air movers are aimed low along walls, angled across floors, and placed in a pattern rather than pointed randomly into a room.

The IICRC S500 includes general guidance for calculating how many air movers a space needs based on the affected floor area, wall area, and projections like closets or offsets, which technicians adjust based on conditions. More is not always better: excessive airflow without enough dehumidification can raise humidity and slow drying elsewhere.

What do air movers do?

Air movers are high-velocity blowers that push air directly across wet surfaces to speed evaporation. They are placed at specific angles along walls, across floors, under cabinets, and sometimes into wall cavities or beneath floating carpet, and are repositioned as areas dry.

• Centrifugal (snail-shell) air movers produce concentrated, high-velocity airflow and are the standard for drying carpet, walls, and floors.
• Axial air movers move large volumes of air at lower pressure and are well suited to drying large open areas, ceilings, and circulating air in a space.
• Low-profile air movers fit under cabinets and in tight spaces.
• Wall cavity and injection systems push or pull air through small holes drilled into walls, cabinets, or under hardwood to dry hidden spaces with minimal demolition.
• Floor drying mats use suction or pressure to draw moisture out of hardwood and other low-porosity floors.

A common setup places air movers in a circular pattern around a room, each aimed along the wall in the same direction, so air sweeps the base of the walls and circulates across the floor. In a room with a kitchen, low-profile units or cavity drying may be aimed under toe kicks after they are removed.

How does dehumidification work in structural drying?

Dehumidifiers remove the water vapor that air movers evaporate, keeping indoor humidity low so materials continue drying rather than reabsorbing moisture. Restoration work mainly uses low grain refrigerant (LGR) dehumidifiers and desiccant dehumidifiers, chosen based on temperature, humidity, and the materials being dried.

LGR vs. desiccant vs. conventional dehumidifiers

How technicians know dehumidifiers are working

Technicians measure temperature and relative humidity in the affected area, in unaffected areas, outside, and at the dehumidifier outlet, then calculate GPP for each. When the dehumidifier is working, the air leaving it should have noticeably lower GPP than the air going in. If the affected area's GPP is not dropping, they look at whether the space needs more capacity, whether outside air is leaking in, or whether the unit needs service.

This is also why you may be asked to keep windows and exterior doors closed. Opening a home to humid outside air can undo the dehumidifier's work. In a dry climate or on a dry day, the technician may intentionally use outside air, which is a judgment call based on measured conditions rather than habit.

Closed, open, and hybrid drying systems

• Closed drying system: the affected area is kept closed and dehumidifiers control the air. This is the most common approach.
• Open drying system: outside air is used to exchange humid indoor air, practical only when outside air is dry and temperatures are suitable.
• Hybrid or specialty systems: containment with plastic sheeting to create a smaller drying chamber, targeted heat, or desiccant air directed into a specific area such as a wood floor or wall cavity.

How are different materials dried?

Each building material holds and releases water differently, so drying methods and timelines change by material. Porous materials like carpet pad absorb water quickly and release it quickly; dense materials like hardwood, plaster, and concrete absorb slowly but hold water tightly, which makes them Class 4 specialty drying situations.

Understanding classes of water damage

The IICRC S500 classes estimate the evaporation load. Class 1 involves a small area with minimal absorption. Class 2 affects an entire room with water wicking up walls less than about 24 inches. Class 3 involves the most water, often from overhead, saturating ceilings, walls, insulation, and subfloor. Class 4 involves materials with low permeability, such as hardwood, plaster, and concrete, requiring specialty drying.

Class drives equipment decisions, especially dehumidifier capacity. A Class 3 loss needs far more water removal from the air than a Class 1 loss of the same square footage. That is also why two jobs of similar size can have very different equipment counts and costs. Category, which describes contamination, is a separate classification explained in water damage categories explained.

What is secondary damage, and how does drying prevent it?

Secondary damage is harm caused not by the initial water but by moisture and humidity left behind afterward: mold growth, swelling and delamination, cupped floors, rusting, peeling paint, and odor. Fast extraction and properly controlled drying are the primary defenses, because they shorten the time materials stay wet and keep humidity in the rest of the building low.

Secondary damage often spreads beyond the room where the leak happened. When a wet area is left without dehumidification, humidity rises throughout the house. Materials in unaffected rooms, such as wood furniture, books, and even drywall, begin absorbing that moisture. Musical instruments, artwork, and electronics can be affected. That is why technicians monitor humidity in unaffected areas as well as in the wet zone.

• Mold: EPA guidance widely cites 24 to 48 hours as the window in which wet materials should be dried to help prevent growth.
• Swelling: particleboard, MDF, and OSB swell and often do not return to shape.
• Cupping and buckling: hardwood absorbs moisture from below and deforms.
• Corrosion: metal fasteners, appliance components, and HVAC parts can rust in prolonged humidity.
• Condensation: when humid air meets cold surfaces like windows, exterior walls, or ductwork, it can condense and create new wet spots.

Drying ceilings, crawlspaces, and hard-to-reach areas

Water that comes from above, such as a burst pipe in an attic or an upstairs overflow, often soaks ceilings and the insulation above them. Wet insulation is usually removed because it traps water against the drywall. Ceiling drywall that is sagging or crumbling is removed for safety; drywall that is intact may be dried with air directed from below and, when accessible, from the attic side.

Crawlspaces present a different challenge. They are often humid, cool, and connected to outside air, and wet soil or vapor barriers can hold water. Drying may involve pumping, removing wet insulation between floor joists, replacing damaged vapor barriers, and using dehumidifiers sized for the enclosed space. Because crawlspace air can move up into the living area, keeping it dry also protects the floors above.

Containment is a useful tool in all of these cases. By sealing a smaller area with plastic sheeting, technicians create a drying chamber where dehumidifiers and air movers can concentrate their effect. Containment also helps keep dust and contaminants from spreading during demolition, which is required practice when Category 3 water or mold is involved.

Documentation you should receive

Drying documentation protects you and supports your insurance claim. At a minimum, ask for the initial moisture map, dry reference readings, daily material and atmospheric readings, equipment placed and removed by date, photographs of demolition and setup, and final readings showing each material reached its drying goal. Adjusters commonly review this documentation to approve equipment charges. It is also valuable if you sell the property later and need to show a past loss was handled professionally.

What are the steps of extraction and structural drying?

A professional extraction and drying job follows a repeatable sequence: inspect and map, extract, remove what cannot be dried, set up equipment, monitor daily, adjust, and verify dry goals before removing equipment. Every step should be documented with photos and readings.

1. Confirm the source is stopped and the area is safe to work in.
2. Determine water category and choose protective equipment and cleaning approach.
3. Take dry reference readings from unaffected materials.
4. Map moisture across floors, walls, ceilings, and cabinets.
5. Extract standing and absorbed water with pumps, extractors, and weighted tools.
6. Remove or open materials that cannot be dried effectively in place, such as wet pad, saturated insulation, or contaminated drywall.
7. Clean and apply antimicrobial where the category and conditions call for it.
8. Determine class and calculate air mover and dehumidifier needs.
9. Place equipment and set up containment if a smaller drying chamber will help.
10. Record initial atmospheric readings: temperature, RH, and GPP inside, outside, and at dehumidifier outlets.
11. Monitor, commonly daily, recording material and air readings on the moisture map.
12. Adjust: move air movers to wet areas, remove equipment from dry areas, add capacity if progress stalls.
13. Verify dry goals for every material type before removing equipment.
14. Provide documentation to the property owner and insurer.

How long do water extraction and structural drying take?

Extraction usually takes a few hours for a typical home loss; structural drying commonly takes about three to five days for many clean-water situations, and longer for dense materials, cold conditions, or losses left untreated for days. The job should end when readings confirm dry goals are met, not on a set schedule.

For the whole-project timeline including repairs, read how long water damage restoration takes.

How much do water extraction and structural drying cost?

Costs vary widely, but extraction is commonly priced per square foot and drying equipment per unit per day, with monitoring, antimicrobial application, and demolition as separate line items. Commonly reported national ranges for a small clean-water extraction and drying job can start in the hundreds of dollars and rise into the thousands for multi-room or complex drying.

Because equipment is often billed per day, drying efficiency directly affects cost. That is one reason daily monitoring matters: equipment should come out of areas as soon as they reach dry goals. Ask for daily logs that show equipment counts and readings, and compare the invoice to those logs. For a line-item breakdown and ranges, see the water damage restoration cost guide.

Can you do structural drying yourself?

For a small, fresh, clean-water spill on hard surfaces, a homeowner with a wet/dry vacuum, fans, and a good dehumidifier can often manage. Once water has soaked into drywall, subfloor, cabinets, or wall cavities, DIY drying is risky because there is no reliable way to confirm hidden materials are dry without meters and dry standards.

Household dehumidifiers are designed to maintain comfort humidity, not to handle the heavy moisture load of a water loss, and many lose effectiveness as air dries. Box fans move air, but not with the focused velocity of centrifugal air movers. If you try DIY drying, buy or rent a pin moisture meter, compare readings with dry materials elsewhere in your home, and call a professional if readings are not dropping steadily.

What should you expect from a professional drying provider?

A qualified provider should explain the water category and class, show you dry reference readings and drying goals, set up both air movers and dehumidifiers, return to take and record readings, and provide a written moisture log when drying is complete. These are the clearest signs that drying is being done to industry standards.

• Technicians trained to IICRC water restoration standards
• A moisture map sketched on a floor plan
• Atmospheric readings including GPP, not just RH
• Equipment choices explained in plain language
• Daily or regular monitoring visits with recorded readings
• Photos of setup, demolition, and final conditions
• Final readings that match dry standards before rebuild

If you need help now, see emergency water damage restoration or find water damage restoration near you. For contaminated losses, extraction and drying are paired with specialized cleaning; see water damage cleanup.
